Products

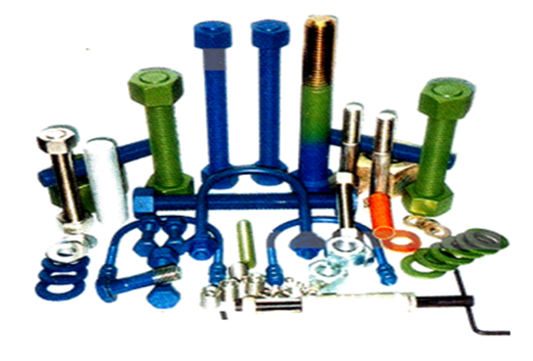

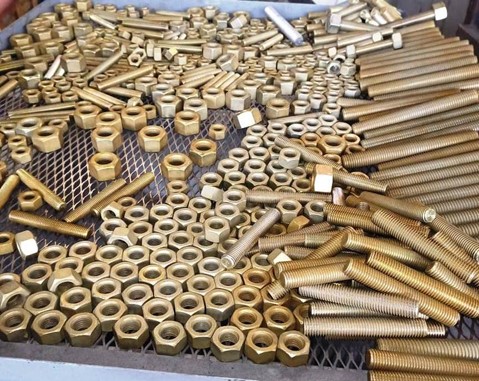

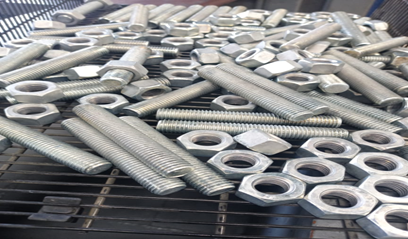

1. Stud Bolts, Nuts & Washers

  • Manufacturing of Bolts, Nuts, and Washers

Grephil International Limited manufactures a complete variety of threaded bars, Stud bolts, Nuts and washers, Anchor bolts, U-bolts, J-bolts, etc., for the Oil, Gas, and Energy Industries in the following classifications:

  • ASTM A193 B7 – Imperial: 3/8” to 4” dia, – Metric: M12 to M52.
  • ASTM A320 L7 – 1/2” to 4” dia, ASTM A193 B16 – 1/2” to 4” dia.
  • ASTM A193/A320 B8 CLASS 2 & CLASS 1, (SS304) 1/2” to 4” dia.
  • ASTM A193/A320 B8M CLASS 2 & CLASS 1, (SS316) 1/2” to 4” dia
  • ASTM A453 Grade 660 CLASS A to D, 1/2” to 4” dia
  • ASTM A194/A325 Grade 2 to 12.9 – Imperial/Metric – All sizes.
  • ASTM A194 Grade 2H Heavy Hex Nuts – All sizes.
  • ASTM F436 Structural Washers – All sizes.
  • Specialized Materials Available on Order:
  • BT8, Titanium, Duplex, Monel 400, K500, Hastelloy, Incoloy, Inconel, Nimonic, Bronze etc.
  • ELECTROPLATING: We offer: –

          Zinc, Cadmium, Nickel, Zinc Nickel, Hot Dip Galvanizing, Chrome

          Electro-plating Services.

  • PTFE COATING: We offer: –

      Zinc/Nickel based PTFE Topcoat, Xylan 1070/1014 coatings, Cadmium-based PTFE Topcoat, Ceramic/Metal based PTFE Topcoat, Zinc Silicate based PTFE Topcoat, etc.

OUR FRANCHISE: “MASTERCOTE” The brand Name of Tri-Star Industries Pte Ltd, Singapore.

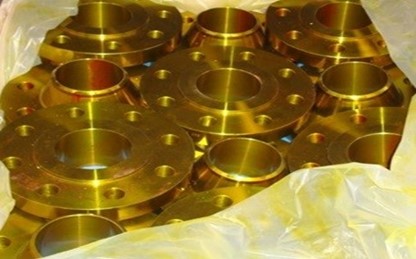

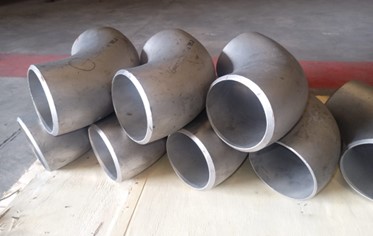

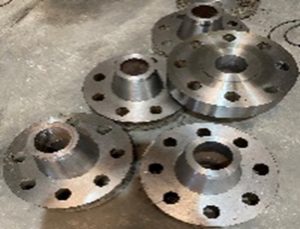

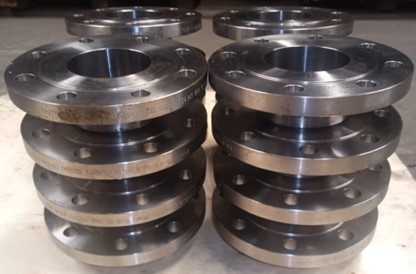

2. Pipe Fittings & Flanges

Product Ranges Are Carbon Steel, Stainless Steel, Titanium, Forge Steel, Monel, Inconel, High Alloy, Duplex Steel, Cupro Nickel, Nickel Alloy Materials ranging from DN15 to 1200 with pressure rating from ANSI 150 to ANSI 10,000, etc.

 Standards: – ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70, A420 WPL3 / A420 WPL6, ASTM A105, ASTM A182, ASTM A694, ASTM A516, and ASTM A350 etc.

3. Valves and Pumps

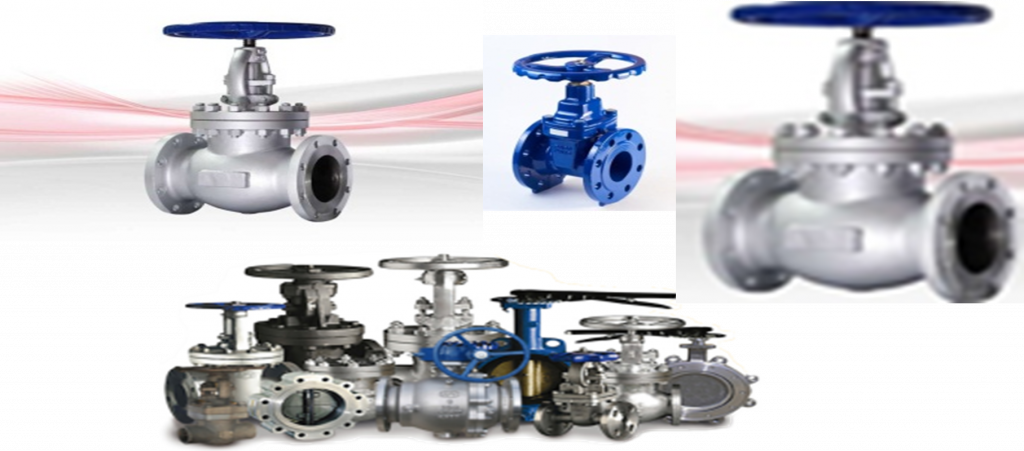

  • Valves

A wide range of Mechanical, Instrumentation, and Control Valves which includes Ball Valves, Check Valves, Gate Valves, Globe Valves, Choke valves, Butterfly Valves, and Metal Seated Valves.  Actuators; Christmas Trees etc.

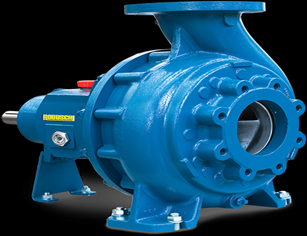

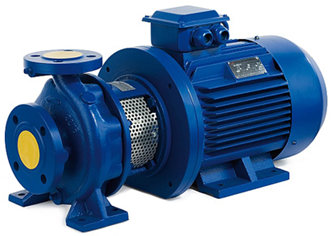

  • Pumps

Dynamic: – Centrifugal pumps. Vertical centrifugal pumps. Horizontal centrifugal pumps. Submersible pumps. Fire hydrant systems.

Positive Displacement: – Diaphragm pumps. Gear pumps. Peristaltic Pumps. Lobe pumps. Piston Pumps.

4. Line Pipes and Structural Steel

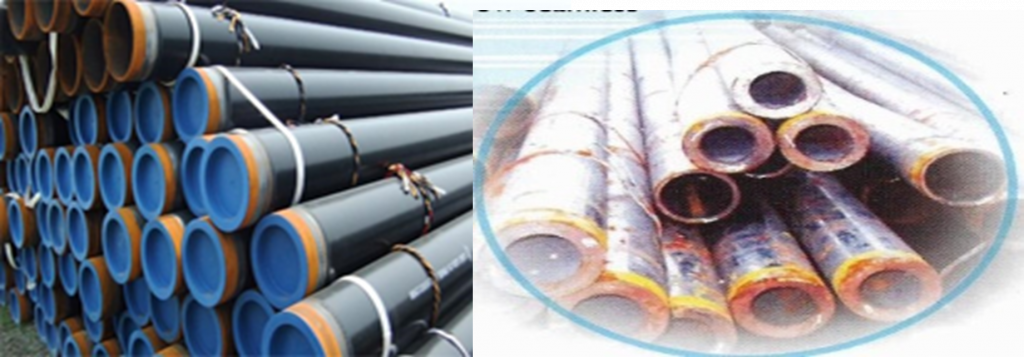

  • Line Pipes

Standards – ASME B36.10 (carbon/alloy pipes). ASME B36.19 (stainless and nickel alloy pipes). API 5L, X42, X46, X52, X56, X60, X65, X70, X80. ASTM A106 (line pipes for midstream oil & gas); API 5CT (tubing/ casing pipes for upstream applications); EN/DIN/BS (European pipe standards).

  • Structural Steel

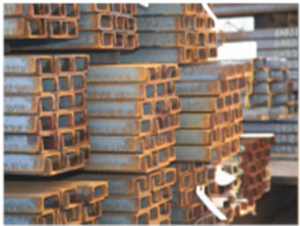

Beams, Plates, Grating, Channels, Angle Irons, Bars, Stair Treads etc:

Material Grades: Q235B, Q195B, A283 GR. A, A283 GR.C, A285 GR. A, GR. B, GR. C, ST52, ST37, ST35, A36, SS400, SS540, S275JR, S355JR, S275J2H, Q345, Q345B, A516, GR.50/GR.60, GR.70, etc.

Standard includes: AISI, ASTMA283/A283M, A572/A572M, A36/A36M, A573/A573M, A529/A529M, A633/A633M, A678/A678M, A588/A588M, A242/A242M, GB/T700-2006, GB/T3274-2007, GB912/2008, JISG3101-2004, EN10025-2-2004, JISG3106-2004, JISG3114-2004, GB/T4171-2008, etc.

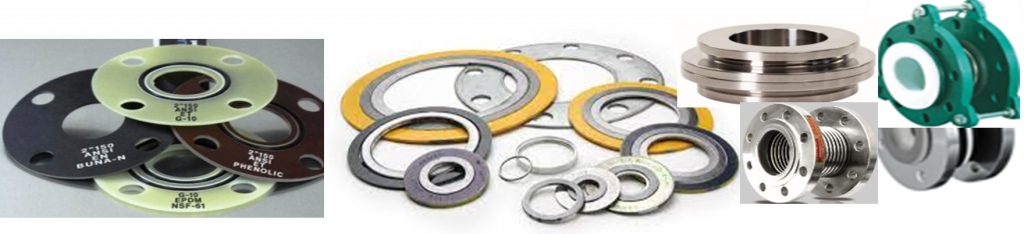

5. Gaskets/Sealing Material

A variety of High-Strength Sealing Materials including: – Spiral Wound Gaskets, Ring Type Joints, Flat Metal Gasket, Ring Type Joint Gasket, Graphite Gaskets, Kammprofile (Stainless Steel 304, 321, 316, 347, Carbon Steel ASTM A285, Duplex 31083, 2205, etc.).

Packing, Neoprene Gaskets, Envelope Gaskets; Compensators, Flange Insulation Kit, etc.

Forge Steel, Monel, Inconel, High Alloy, Duplex Steel, Cupro Nickel, Nickel Alloy Materials ranging from DN15 to 1200 with pressure ratings from ANSI 150 to ANSI 10,000, etc.

Standards: – ASTM/ASME A234 WPB / A860 – MSS-SP-75 WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70, A420 WPL3 / A420 WPL6, ASTM A105, ASTM A182, ASTM A694, ASTM A516, and ASTM A350, etc.

Packing, Neoprene Gaskets, Envelope Gaskets; Compensators, Flange Insulation Kit, etc.

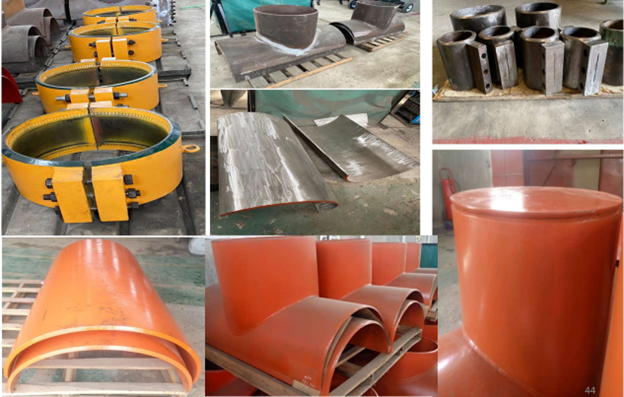

6. Split Tees & Sleeves and Pipe Clamps

  • GREPHIL Split-Sleeves are designed to reinforce corroded, non-leaking, weakened, dented, or damaged pipelines, while the Split-Tees are for the repair of illegal connection (IC), where the IC points cannot be cut out.
  • Both Split-Tees and Split-Sleeves are designed per application to fit properly on the outside diameter of the pipeline. The sleeve can be welded longitudinally, and circumferentially for pressure containment.
  • GREPHIL Split-Tees and Split-Sleeves are designed to and/or conform with the requirements of ASME PCC-2, ASME B31.4, and ASME B31.8. Customers can also specify the wall thickness and material yield strength or provide the design factor (class location) and design pressure of the pipeline and GREPHIL will calculate the required thickness. Our Split-Sleeves can also be specifically designed in accordance with Client specification.
  • The Lockbolt Clamps are conventional clamps that can be welded to line pipe for permanent repair following company specification.
  • Viton Seals for the production of the “Lockbolt Clamp” are sourced from accredited OEMs.

7. Shrinkable Sleeves and Cathodic Protection

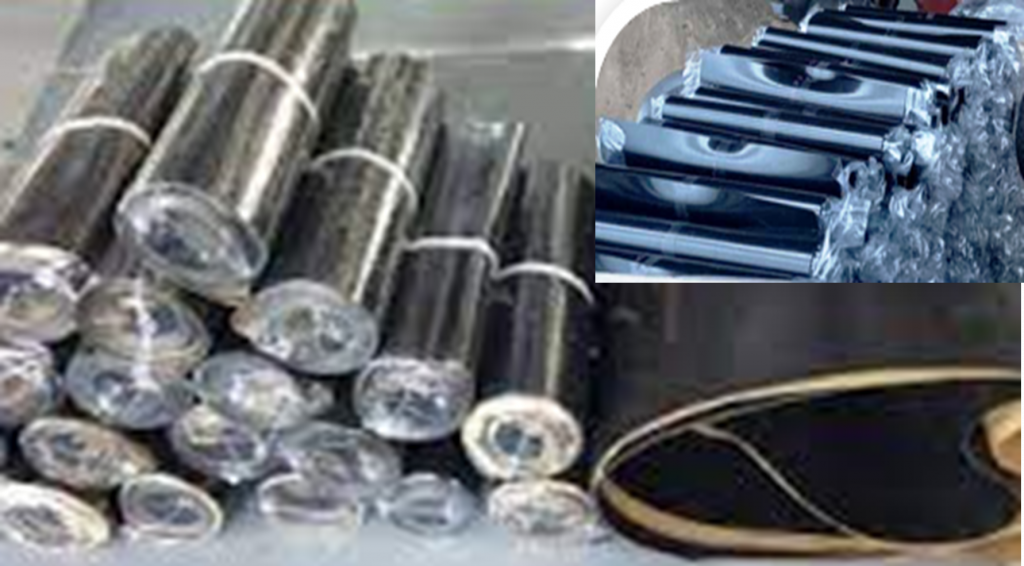

  • Shrinkable Sleeves

We stock and supply a wide range of sealants. Our Product Range Includes: Canusa/Covalence Heat Shrinkable Sleeves and Wraps. Polyken® Polymeric Tapes and Liquid Epoxies for Corrosion Protection. AnodeFlexTM Cathodic Protection. Powercrete Liquid Coatings and AnodeFlex Linear Anodes. Stopaq Visco Elastic Coatings.

  • Cathodic Protection (DIMET)

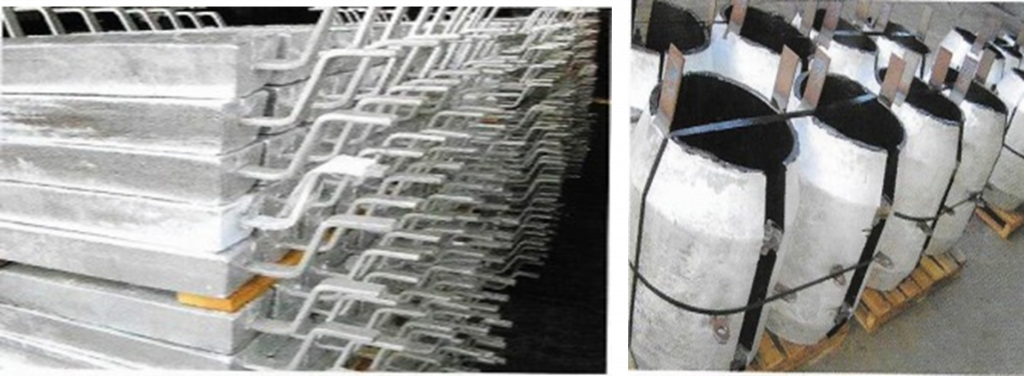

  • GALVANIC ANODES: Aluminium anodes and zinc anodes including:

      Offshore structural anodes (platforms, jetties, wharves, etc.); Pipeline

       bracelet anodes (for both onshore and offshore pipelines); Marine anodes

       (for full, tank, etc); magnesium anodes for onshore underground structures.

  • IMPRESSED CURRENT ANODES: Silicon/chromium/Iron anodes, Platinised Titanium/Mixed Metal Oxide, Lead/Silver/Antimony anodes, Graphite anodes.
  • TRANSFORMER RECTIFIER: Custom-built Cathodic Protection transformer rectifiers
  • INSTRUMENT: Copper sulphate, silver chloride, zinc, and copper sulphate/zinc reference cell.

X60, X65, X70, X80. ASTM A106 (line pipes for midstream oil & gas); API 5CT (tubing/ casing pipes for upstream applications); EN/DIN/BS (European pipe standards).

8. Cable Support Systems and Flooring Pannels/Stair Treads

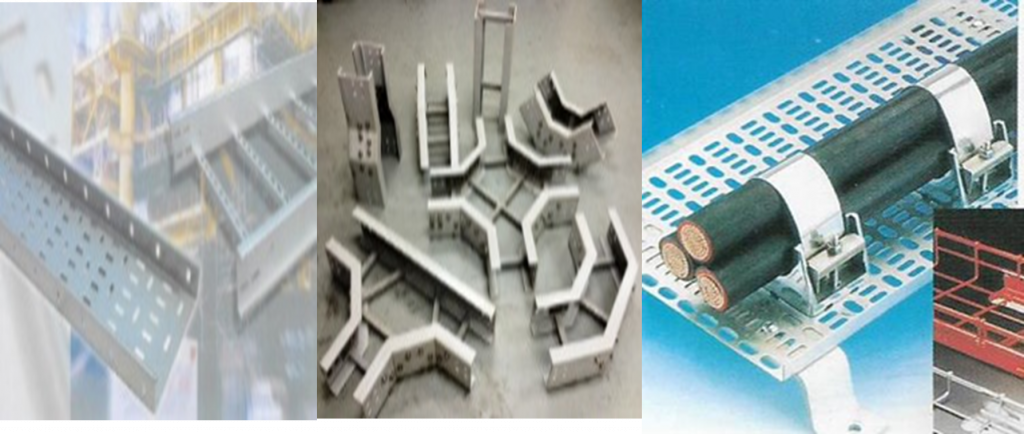

  • Cable Support Systems

Materials range from stainless steel, carbon steel, electro-galvanized, per-hot-dipped galvanized, high silicon steel to aluminium. Finishing ranges from hot-dipped galvanized (BS EN ISO 1461:1999), epoxy powder coating to fluoropolymer coating. Our cable ladders are successfully load tested and certified to NEMA VE-1-1998 Class 20C standards. Cable trunking is tested and certified to SS249:1981.

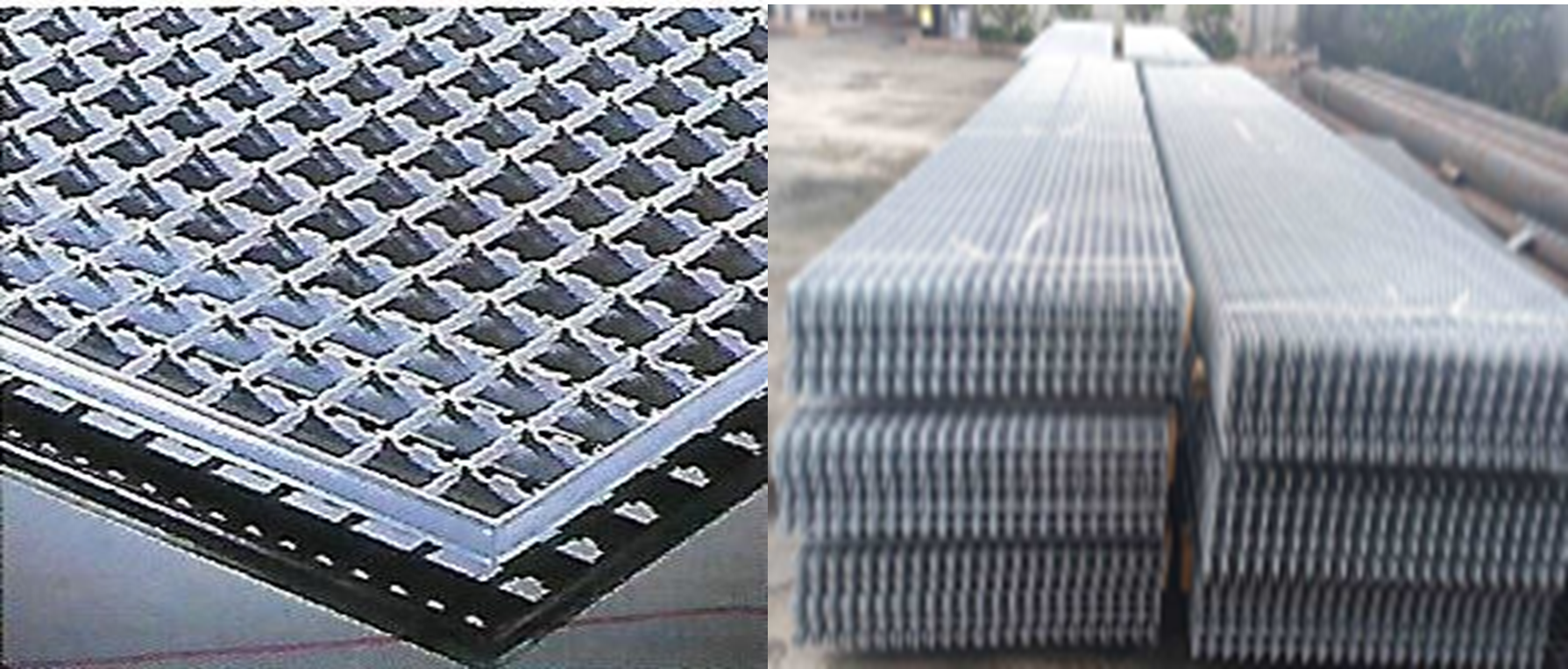

  • Flooring Pannels/Stair Treads

Grating, Stair Treads BS 4360 GRADE 43A, DIN 17100 -ST.52-3U, HOT DIP GALVANIZED, etc.

9. Barrel Doors and Bolt Tensioning

  • Barrel Doors (Quick Opening Closures)

Quick closures cover ranges from 2“to 72″ with pressure up to Rating 2500, and temperatures from -46 ° C to + 315 ° C.

Types include: – Quick threaded closure (QOC THD); Double CLAMP quick closure. Quick closure with SECTOR locking system.

Materials grades: – Forged carbon steel and stainless.

Seals: – Built with replacement seals which make it unique from other products.

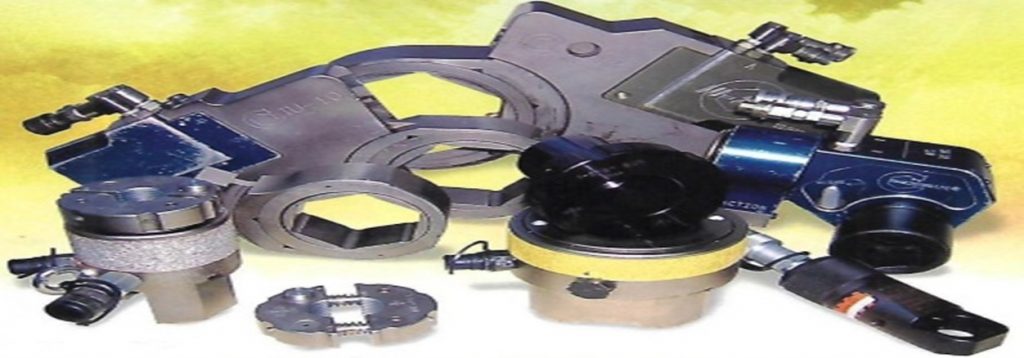

  • Bolt Tensioning

We offer for sales and rental a full range of Square Drive or Low-Profile Hydraulic Torque Wrenches and power consoles for Topside and Subsea Tensioning.

10. Marine Rubber Fenders and Monolithic Isolation Joints

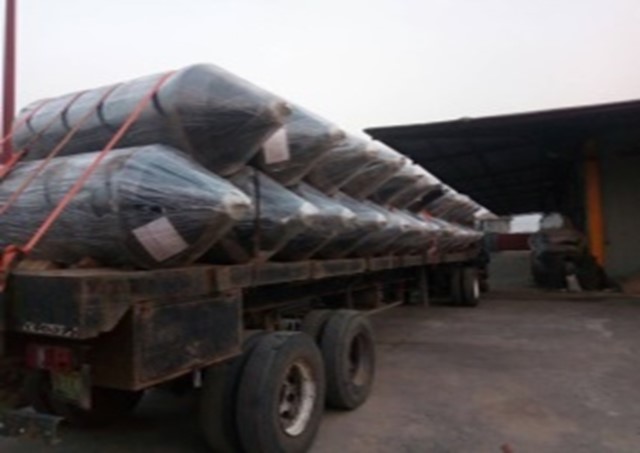

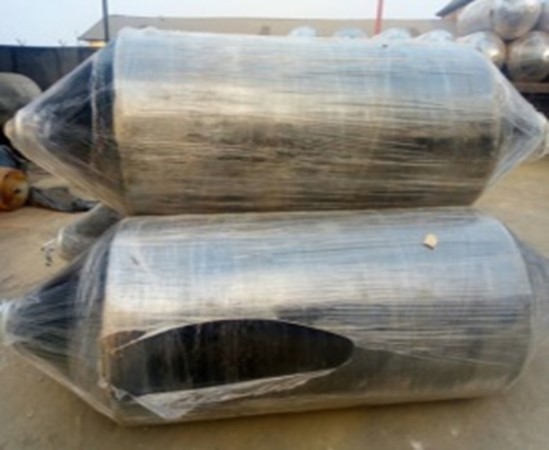

  • Marine Rubber Fenders

The diameter ranges from 150 to 2000mm. The length is supplied according to customer’s specifications. The performance ratio is very high and can be connected in several different ways-horizontal, vertical, or diagonal, it can also be adapted to the corners of the dock.

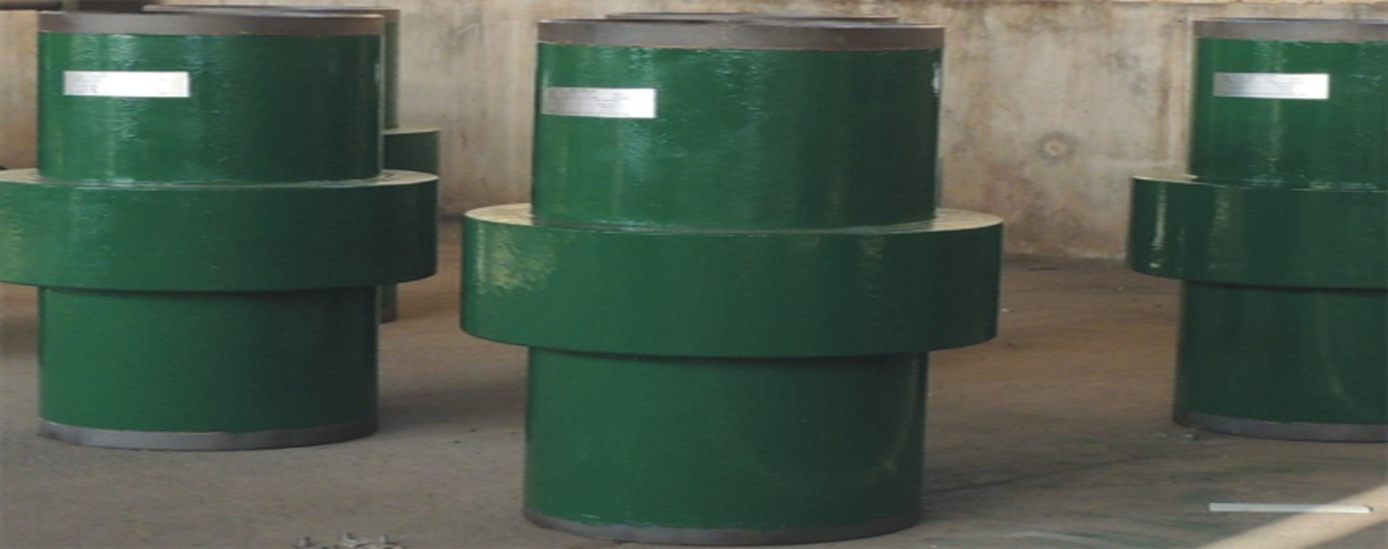

  • Monolithic Isolation Joints

Available sizes range from 50 NB to 1200 NB (2″ through 48″) and pressure rating from ANSI 150 to ANSI 10,000 Standards: – ASTM, GB, API, DIN, JIS.

11. Heating and Filtering Devices

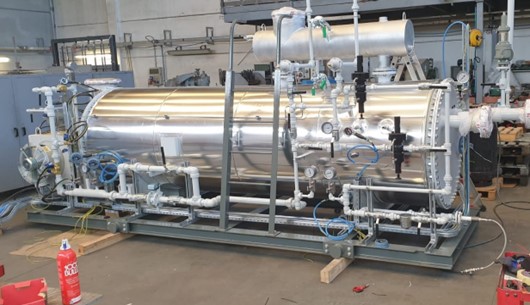

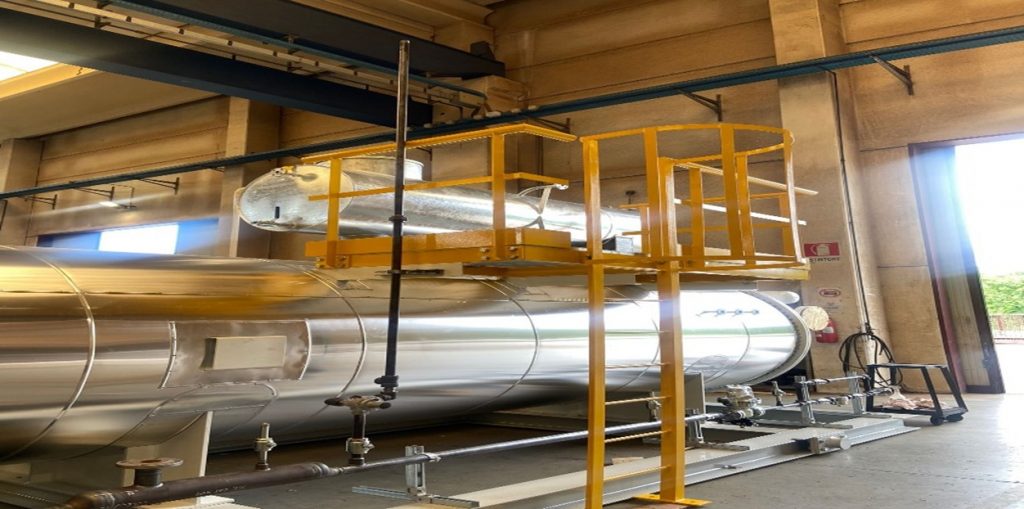

  • WATER BATH GAS HEATER: Used in the Oil and Gas natural gas industry for a variety of applications including heating natural gas and preventing hydrate formation.

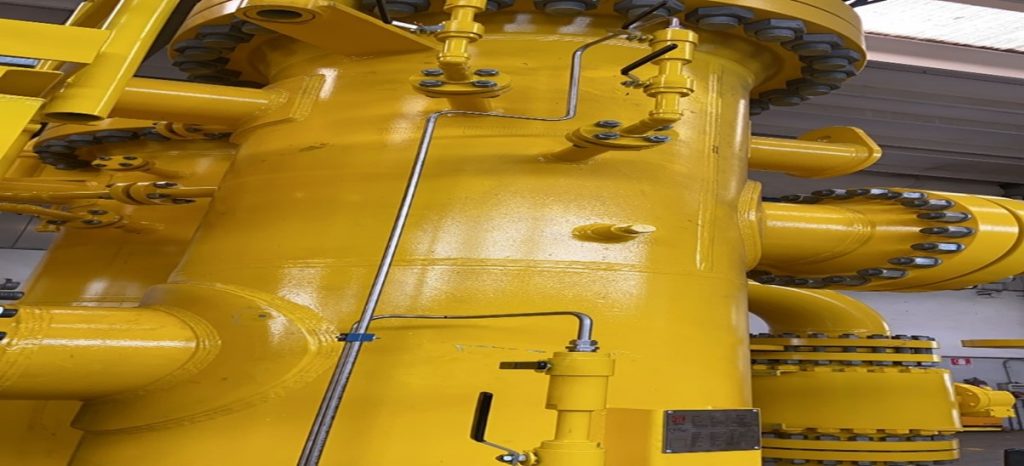

  • FILTER WATER SEPARATOR: An economical device designed to remove water and solids from aviation fuels.
